LED Wire Wrapped Circuit

« Back to Portfolio


How it Was Made

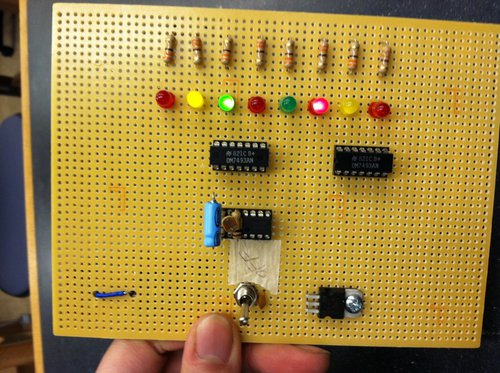

LED Photoresistor CircuitThis was a paired project. The sLED flash faster when the photoresistor receives more sunlight, than if it does not. The circuit is contains a 555 timer and two 7493 ic. This circuit is wire-wrapped on a perforated board.
