How it Was Made

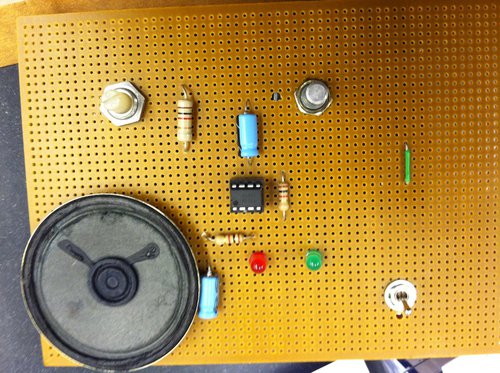

Modified MetronomeSince I play a ton of instruments, I thought it was a good idea to work on a project that connects electronics and music together. I built a metronome based off of Jameco Electronic's metronome tutorial. I modified it slightly to include an on-off switch and a volume switch. The intent was to create something raw on a perforated board. The circuit is wire-wrapped, though I was a little crazy and tried to solder a few together. This was a great project, the project helped me to understand what goes on internally when we use electronic devices.

Yes I totally did use this board during music practice.
